hole size
Φ 3.2 /.126”

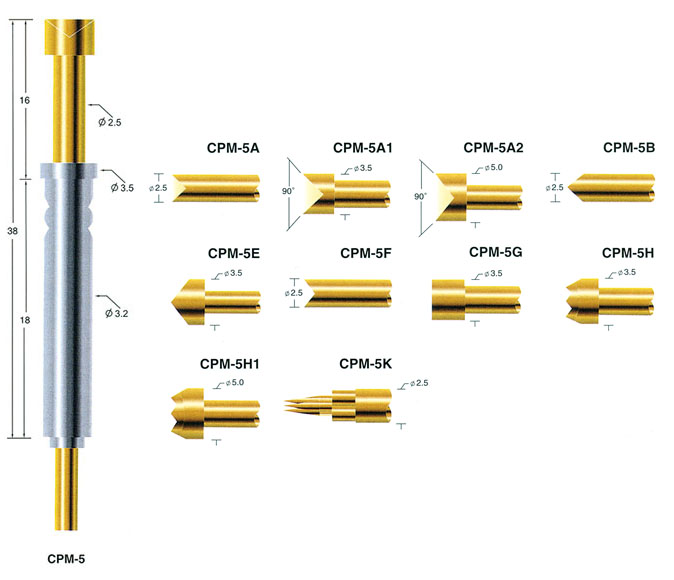

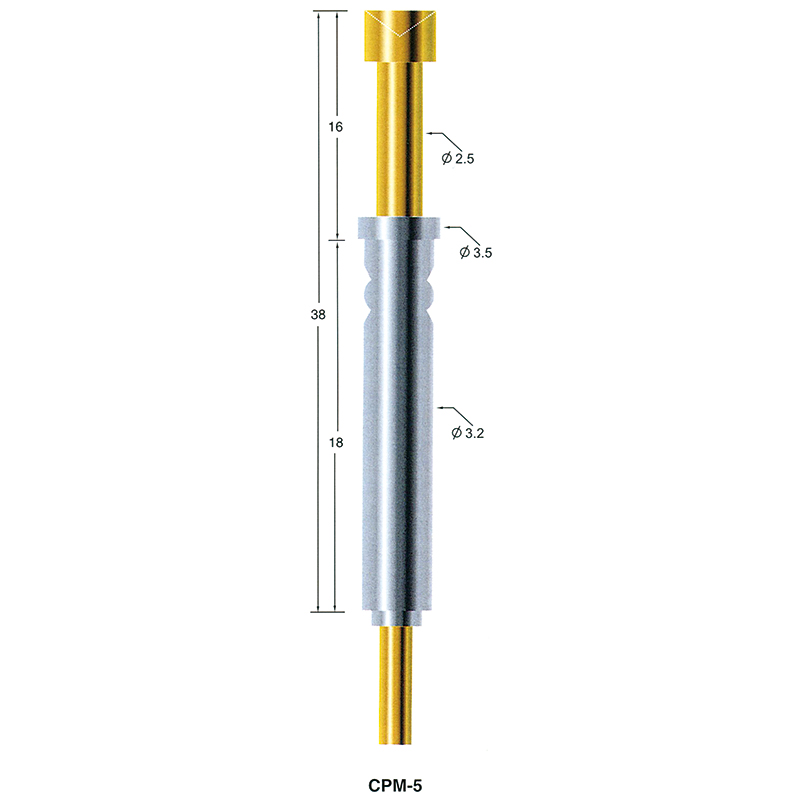

Probe specifications CPM-5
Recommended min. center 4.2(.165")
Full travel 10(0.393" )
Current rating 10A
Contact resistance 50mΩ

Materials and finishes
Plunger Brass, Au plated
Barrel Brass, Ni plated
Spring Stainless


During the mounting process, the Loaded Board Test Probe requires specific hole sizes for secure installation. The recommended mounting hole size is Φ 3.2 /.126", providing a suitable diameter for the probe to fit securely into the PCB. This precise hole size ensures a tight and accurate fit, facilitating reliable electrical contact between the probe and the loaded PCB.

The Loaded Board Test Probe, specified as CPM-5, follows specific probe specifications to ensure accurate and consistent testing results. The recommended minimum center distance between probes is 4.2 (.165"), ensuring sufficient spacing between probes to avoid interference and enable effective testing.

With a full travel distance of 10 (0.393"), the probe has a significant range of motion during testing. This extensive travel range allows comprehensive coverage and analysis of the loaded PCB, ensuring that all critical areas and components are thoroughly evaluated.

The probe has a current rating of 10A, indicating its ability to handle electrical currents up to 10 amperes. This high current rating makes it suitable for testing applications that require a higher power capacity, ensuring accurate and reliable testing of the loaded PCB under varying electrical loads.
