Unit : mm

hole size
Φ 1.7 /.0669”

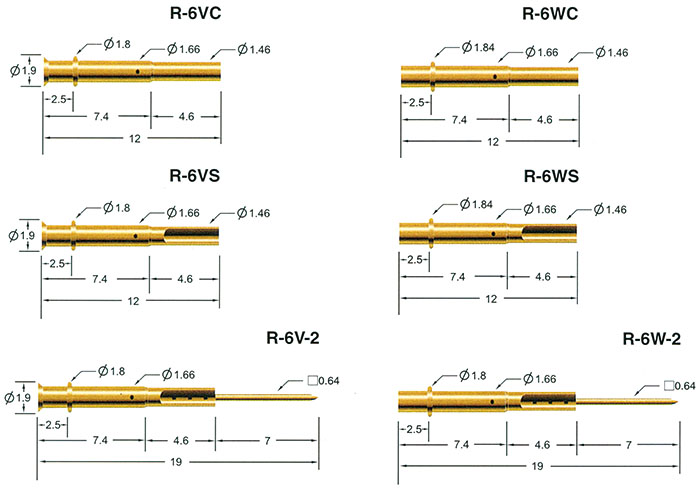

hole size
Φ 1.75 /.0689”

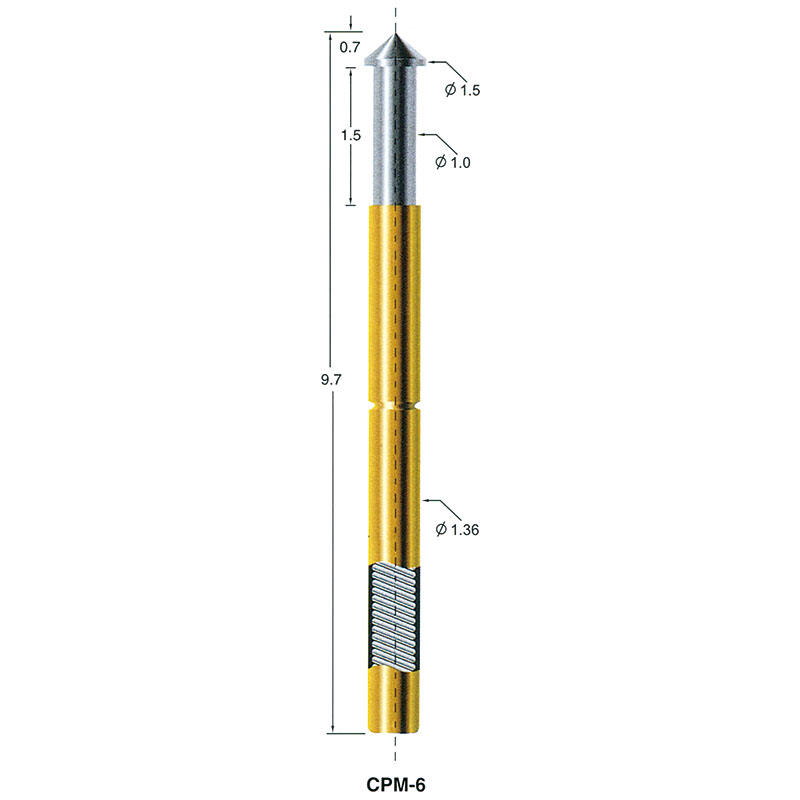

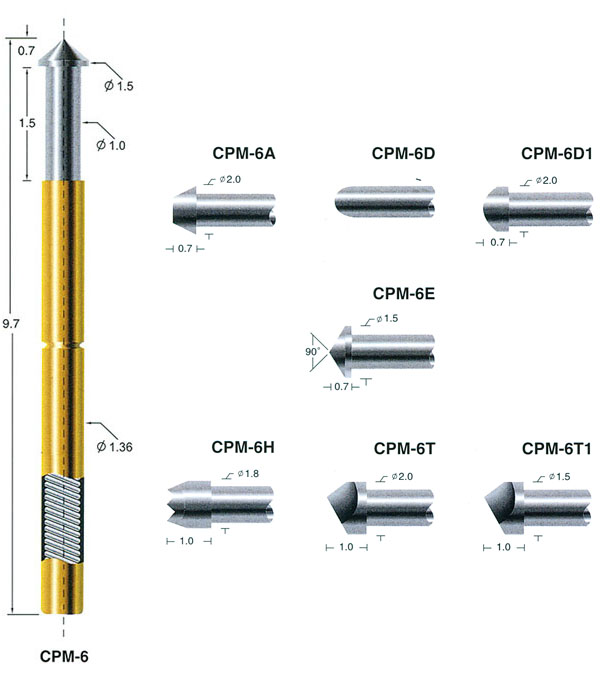

Probe specifications  CPM-6 / R-6
Recommended min. center 2.54(.1")
Full travel 1.5(0.59" )
Current rating 3A
Contact resistance 50mΩ

Materials and finishes
Plunger Be Cu,Ni plated
Barrel Brass, Gold plated
Spring Stainless


During the mounting process, the Loaded Board Test Probe requires specific hole sizes to securely install it on the PCB. The recommended mounting hole sizes are Φ 1.7 /.0669" and Φ 1.75 /.0689". These precise hole sizes provide a suitable diameter for the probe, ensuring a secure and accurate fit into the PCB. The proper fit guarantees reliable electrical contact between the probe and the loaded PCB, enabling accurate testing and measurement.

The Loaded Board Test Probe is available in two specifications: CPM-6 and R-6. These specifications determine the probe's performance characteristics and capabilities during testing. The recommended minimum center distance between probes is 2.54 (.1"), ensuring sufficient spacing between probes to avoid interference and enable effective testing across the PCB.

With a full travel distance of 1.5 (0.59"), the probe has a limited range of motion during testing. This travel distance allows for targeted testing of specific areas or components on the loaded PCB, ensuring accurate evaluation and analysis.

The probe has a current rating of 3A, indicating its ability to handle electrical currents up to 3 amperes. This moderate current rating makes it suitable for a range of testing applications that require reliable electrical contact and accurate current measurements.

The contact resistance of the probe is specified as 50mΩ, indicating the level of resistance encountered during electrical contact. The low contact resistance ensures minimal signal loss and accurate transmission of electrical signals during the testing process, contributing to the overall reliability and accuracy of the loaded PCB.
