MODEL:CPM-40 / R-40

Welcome to contact us.
เพิ่มในคำถาม
SPECIFICATION

Unit : mm




Mountiong
hole size
Φ 0.57 /.0225”

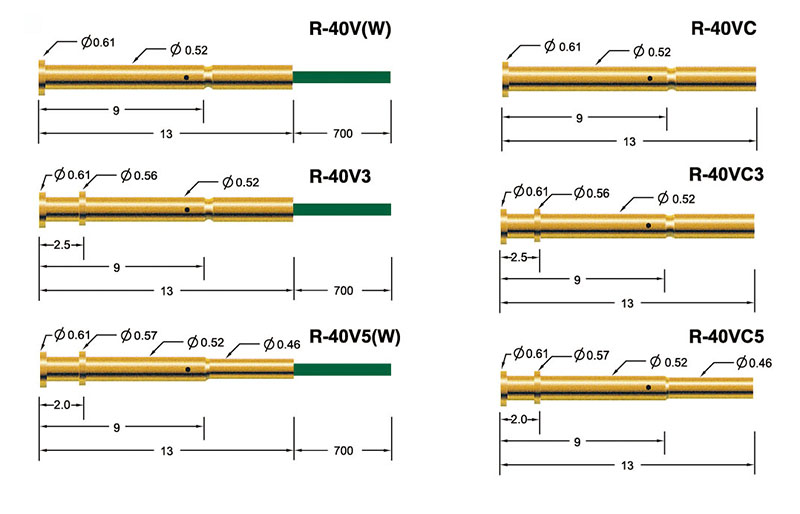

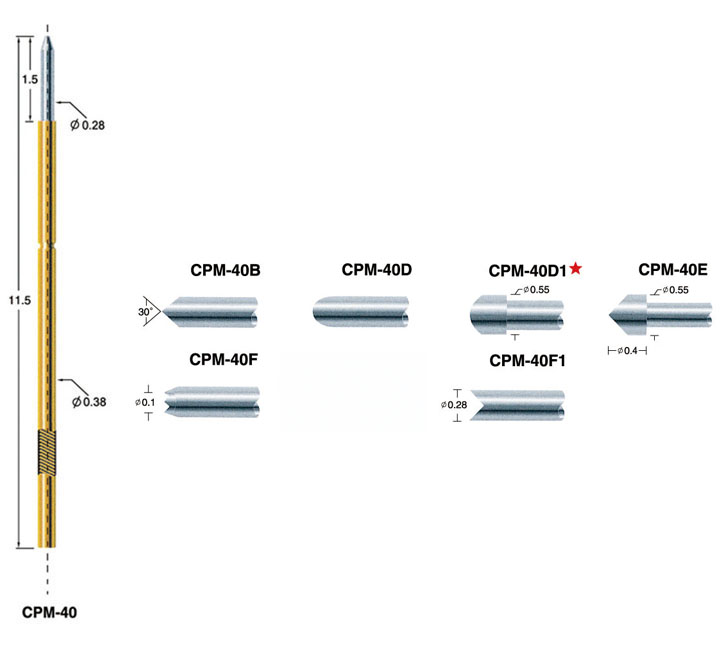

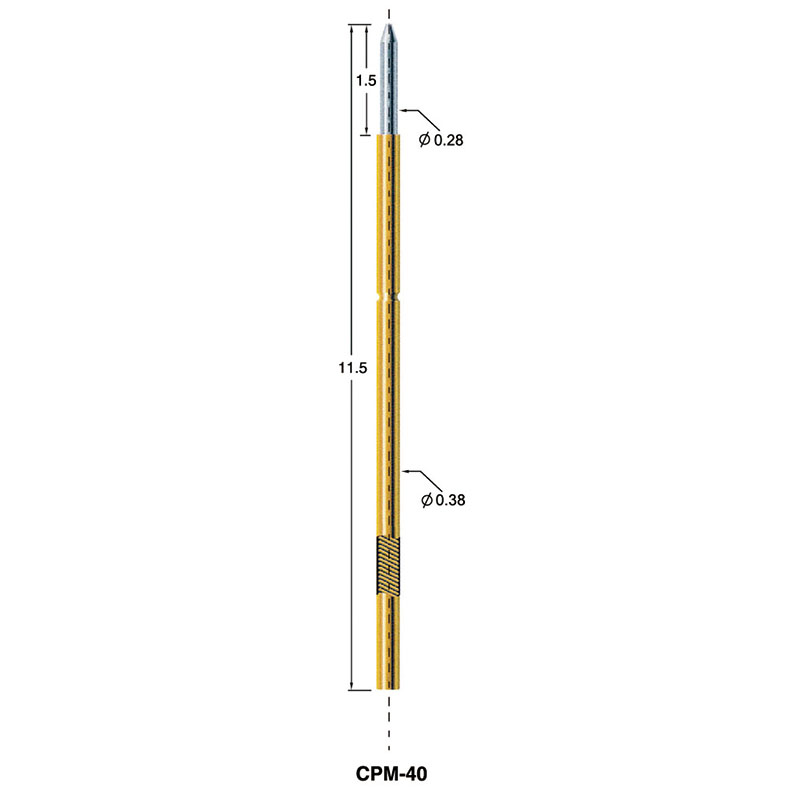

Probe specifications CPM-40/R-40
Recommended min. center 0.75 (.0295")
Full travel 1.5(0.059" )
  2.0(0.78" )
Current rating 0.5A
Contact resistance 180mΩ
Spring force 50g
code for customized products

Materials and finishes
Plunger SK4, Ni plated
Barrel Phosphor bronze, Gold plated
Spring Stainless Steel


The Bare Board Test Probe is an indispensable tool in the field of electronics testing, specifically for evaluating the functionality and reliability of bare printed circuit boards (PCBs) before they are populated with components. This probe ensures that the PCBs meet the required standards and specifications.

During the mounting process, the probe requires a specific hole size for accurate and secure installation. In this case, the recommended mounting hole size is Φ 0.57 /.0225". This ensures a precise fit and allows the probe to make reliable electrical contact with the PCB.

The Bare Board Test Probe, specified as CPM-40/R-40, follows strict specifications to ensure consistent and accurate testing results. The recommended minimum center distance between probes is 0.75 (.0295"), providing proper spacing for efficient testing and minimizing interference between adjacent probes.

The probe has a full travel distance of 1.5(0.059") or 2.0(0.78"), indicating the maximum range of movement during testing. This versatility allows for thorough testing and analysis of the PCB's performance and functionality.
